Product parameters:

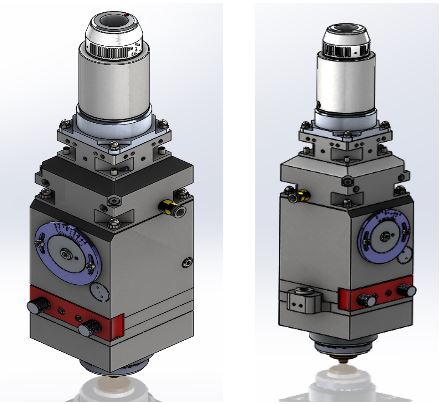

    1.2000W fiber laser precision cutting head technical parameters

    2.Incident light wavelength: 355nm, 532nm, 1030 ~ 1090nm, 10.6μm

    3.Maximum laser power: 2000W

    4.Lens diameter: Φ20mm

    5.Maximum aperture: Φ16mm

    6.Collimation focal length: optional (f50, f75)

    7.Focusing focal length: optional (f50, f75, f100)

    8.Cooling method: collimator water cooling

    9.Vertical focusing range: +2.5 / -3.5 mm

    10.Horizontal centering adjustment: ± 1.0 mm

    11.External interface: with QBH connector; optional (IPG, GSI, SPI fiber rod)

    12.Coaxial blowing: Φ6 tracheal structure

    13.Maximum welding pressure: 2.5 MPa

    14.Cutting nozzle aperture: optional (0.3mm ~ 1.0mm)

    15.Operating temperature: 5 ~ 55 ° C

    16.Storage temperature: -25 ~ +55 ° C

    17.Humidity: 30% to 95%
