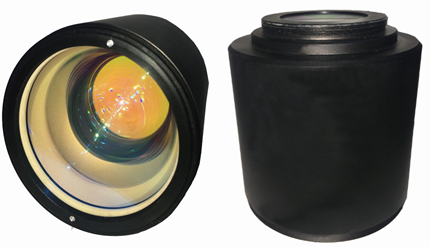

    Telephoto achromatic scanning objective

    Telephoto achromatic scanning objective

    Product introduction:Scanning galvanometer focusing system integrated coaxial camera function, designed to meet the high precision positioning requirements of galvanometer scanning processing system design, CCD observation of the image and the laser beam focal point completely coaxial, and F-theta lens and lighting source matching can be achieved &quot;WYSIWYG&quot; machine vision positioning laser processing.
    • technical parameter
    • white paper



          Product deion:

              Scanning galvanometer focusing system integrated coaxial camera function, designed to meet the high precision positioning requirements of galvanometer scanning processing system design, CCD observation of the image and the laser beam focal point completely coaxial, and F-theta lens and lighting source matching can be achieved "WYSIWYG" machine vision positioning laser processing. Ordinary fθ scanning objective (field mirror) because there is no achromatic design, to do coaxial vision must be calibrated method for a large number of correction work, and far away achromatic scanning objective lens from the hardware to solve these problems , Without the use of software for cumbersome location coincidence correction, positioning accuracy higher.

          COLOR CORRECTED F-THETA LENSRS:

           This lens uses achromatic design, fully meet the coaxial video positioning processing requirements, but also in the full scan range to take the uniform spot focus characteristics.

          Features:

              1.Completely eliminate the lens color

              2.The laser focusing performance is consistent throughout the full scan range

          Main feature:

              1.Galvanometer scanning system integrated coaxial monitoring

              2.Field Mirror Perfect Achromatic Design

              3.Scanning range of laser focusing performance

              4.Monochromatic lighting design improves observational clarity

              5.Standard interface for most of the galvanometer

              6.Monitor the field of view with the moving galvanometer scan

          Main application:

              Laser marking;

              Laser welding;

              Laser cutting;
